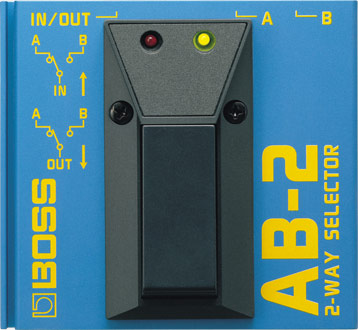

Boss AB-2 2-Way Selector A/B Switch

Buzz Music is Far North Queenslands' home of Boss

The BOSS AB-2 is a 2-way selector that makes changing inputs or outputs easy. One stomp is all it takes to instantly switch between two guitars or effects setups, change amplifiers or switch between an amp and tuner. Rock-solid BOSS construction ensures the AB-2 will stand the test of time.

• Affordable A/B selector with 1-click operation and silent switching
• 2-way selector for using A/B input with one output, or vice-versa
• Instantly change guitars, effects setups or amplifiers, or switch between an amp and tuner

Nominal Input Level

-20 dBu

Nominal output Level

-20 dBu

Control

Pedal

Indicators

A (red), B (yellow)

Connectors

A jack, B jack, IN/OUT jack

Current Draw

5 mA or less
* Expected battery life under continuous use: Carbon: 100 hours
* This figure will vary depending on the actual conditions of use.

Power Supply

Dry Battery [R03/LR03 (AAA) type] x 2

Accessories

Owner's Manual, Dry Battery [R03/LR03 (AAA) type] x 2, Number Sticker

Size and Weight

Width

96 mm
3-13/16 inches

Depth

90 mm
3-9/16 inches

Height

43 mm
1-3/4 inches

Weight

240 g
0 lbs. 9 oz.

* 0 dBu=0.775 Vrms

*The specifications are subject to change without notice.
